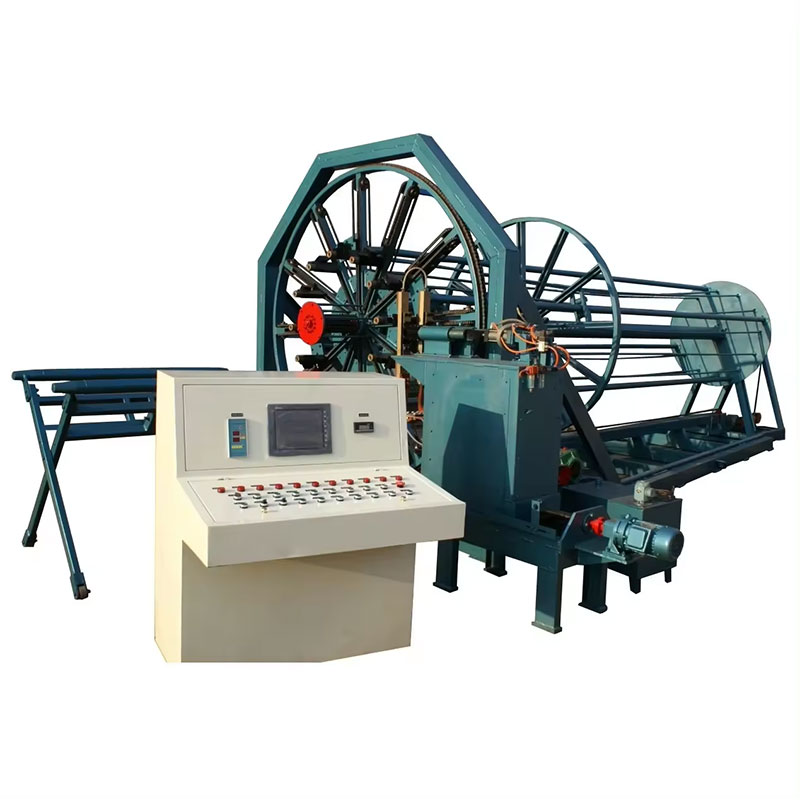

Automatic Cage Welding Machine

The BaoLai Brand automatic cage welding machine features a propulsion mechanism with an automatic diameter adjustment capability, suitable for both flat and socket & spigot joints. The socket angle is adjustable, and the electrical system is digitally controlled, allowing for synchronized proportional controls and variable frequency rates to enhance the machine's precision.

Model:Model HGZ 2000 Automatic Steel Rolling Welding Machine

Send Inquiry

Product Description

Customers have found this automatic cage welding machine to be stable, reliable, and efficient, with quick and accurate diameter changes, making it easy to operate with high productivity. It stands out as an excellent option for those looking to start their own pipe production line.

Baolai Brand automatic cage welding machine Parameters:

For internal diameter ranged from 300-1500mm, length ranged from 1000-4000mm.

BaoLai Brand Full Automatic Steel Rolling Welding Machine ModelHGZ 1500
Applicable to Pipe diameter（mm)	Φ300-1500 socket&spigot joint
	Φ300-1500 flat joint
Maximum Welding Length（mm)	4200
Steel types（mm)	Annular SteelΦ3.5-6
	Vertical SteelΦ4-6
Vertical Steel Number	12
Annular Steel Distance（mm)）	20-150
Angle of the Socket Joint	10-25
Main Plate Speed（r/min）	0-10
Motor Power（kw）	0.75kw Expanding Motor+0.75kw following motor1.1kw Vertical Steel Push Motor+2.2kw Main Plate Power Motor
Welding Machine Transformer（kw）	Transformer Power Rate100kw

This advanced automatic cage welding machine is specifically designed for producing steel-reinforced frames for concrete pipes, offering exceptional precision and efficiency in construction projects. The model HGZ 1500 is capable of handling internal diameters ranging from 300 to 1500mm and pipe lengths from 1000 to 4000mm. One of the standout features of this equipment is its seamless integration with our proprietary steel molds, ensuring that every pipe produced is of the highest quality, with perfect alignment and structural integrity.

The machine is fully automatic, significantly reducing the need for manual intervention and making it incredibly user-friendly. With an impressive production capacity of 60 to 120 meters per hour, it is ideal for large-scale operations that require both speed and consistency. Additionally, the pitch of the reinforcement can be easily adjusted to meet specific project requirements, adding to the machine's versatility.

Equipped with a modern touch screen interface, the automatic cage welding machine offers intuitive control, allowing operators to easily manage the entire production process. The system is designed to store data for hundreds of different specifications, enabling quick setup and reducing downtime when switching between different production runs. This capability not only enhances operational efficiency but also ensures that the machine can adapt to a wide range of project needs, making it an invaluable asset in any manufacturing environment.
